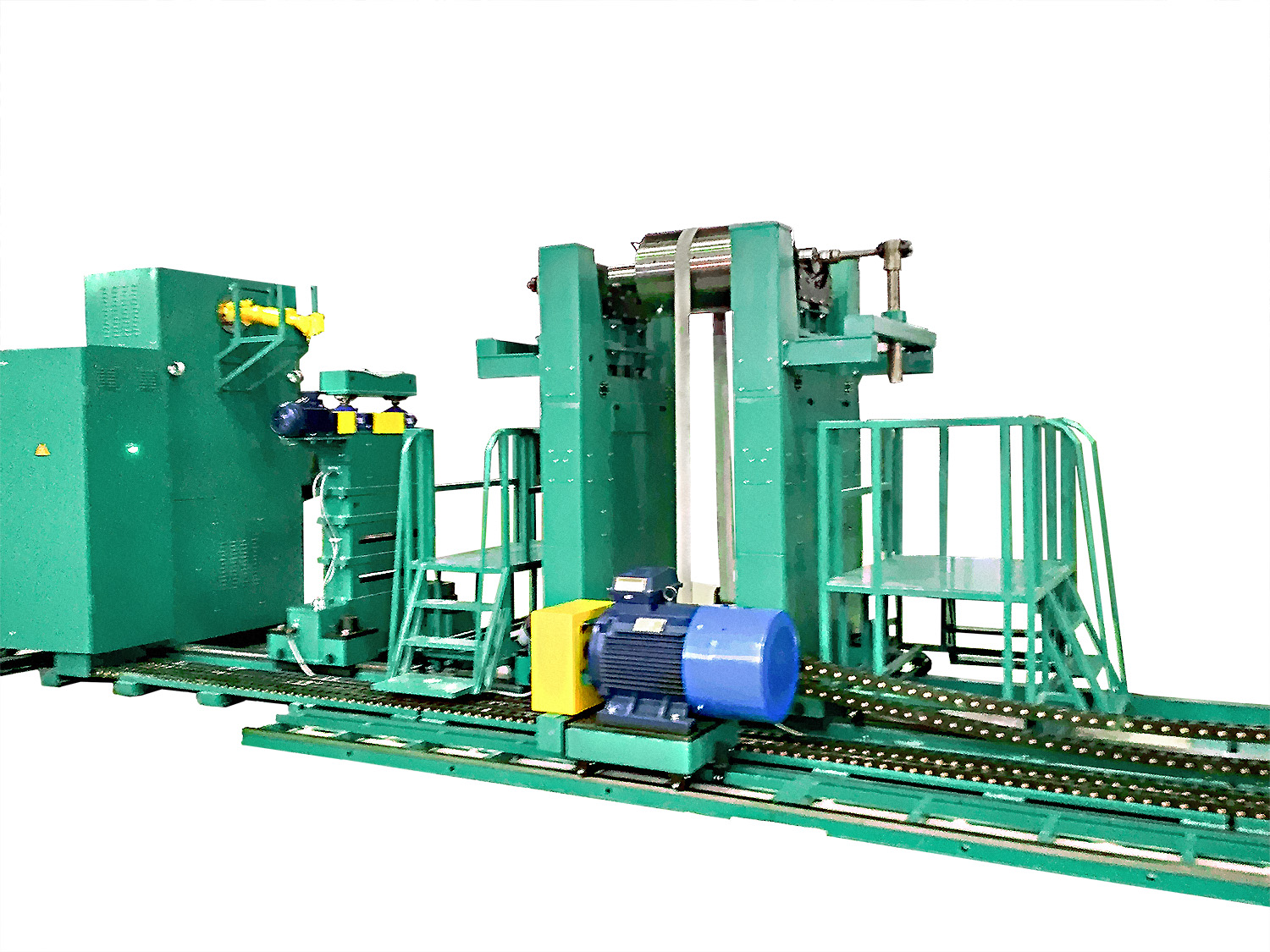

9KW723
Soft-bearing heavy industry balancer up to 40000 kg. Combined drive. Rotor jacks
Maximal weight, kg
Maximal diameter, mm
Ultimate industrial balancing solution, specialized industrial applications
The machine has high accuracy (0,4 gmm \ kg). Accuracy is achieved due to the special design of the spindle and the rig of the machine, as well as a reliable balancing system, PAK-1, which has a high degree of noise immunity. Ease of control allows you to quickly learn how to work on the machine and get to work as soon as possible. When designing the machine, high demands were placed on the functionality and versatility of each node, this made it possible to install absolutely any driveshaft on the machine with a minimum of time.
Characteristic features of soft bearing balancing machines:
- Self-aligning rollers.
- Frequency-controlled asynchronous electric drive.
- The presence of jacks for smooth and shock-free installation of the rotor.
- The possibility of using the machine without installation on a special foundation.
- 2 end stops included.
- HIGH BALANCING ACCURACY 1 GMM/KG
- REAL TIME DISPLAYED IMBALANCE MEASURING
- SOFT-BEARING SYSTEM ENSURING LINEAR SENSITIVITY AND HIGH PRECISION ACROSS ALL SPEEDS
- SELF-ALIGNING ROLLER BLOCKS AUTOMATICALLY ADJUST TO THE ROTOR ON TWO AXES
- CYLINDRICAL ROLLERS HAVE A WIDE CONTACT AREA TO PREVENT ROTOR SURFACE DAMAGE
- LONG STROKE BELT DRIVE
- INFINITELY VARIABLE SPEED CONTROL OF THE ROTOR IS PROVIDED BY THE FREQUENCY INVERTER DRIVE
- OWN ADVANCED MEASURING SYSTEM
- SELF-DIAGNOSTICS FUNCTION
- ENGLISH INTERFACE
- CUSTOMISED PRINT OUT OF BALANCE DATA
- DATA STORAGE TO INTERNAL FLASH MEMORY AND USB MEMORY STICK
- 17-INCH TOUCH SCREEN MONITOR
- OPERATION & SERVICE PERSONALIZED MANUALS
- INTUITIVE SIMPLE OPERATIONING
- HIGH PRODUCT RELIABILITY
- SAFETY OPTIONS MODIFICATIONS
- LOW-COST SPARE PARTS
- OEM AND AFTERMARKET REPAIRS
- 12 MONTHS WARRANTY
Maximum-Capacity Support Systems
- Dual maximum-capacity self-aligning roller cassette system – Two sets of self-aligning roller cassettes accommodate rotors up to 5,000kg and up to 40,000kg respectively. The dual maximum-capacity approach provides optimal support characteristics across the power industry weight spectrum while eliminating alignment requirements and preventing surface damage on the most critical power generation rotors.
- Power industry anti-knurling roller design – Ultra-wide cylindrical roller surfaces with specialized radius chamfers engineered to prevent “knurling” effects on massive power generation rotor bearing journals. This design feature preserves critical surface integrity on the highest-value power industry rotors including steam turbines, gas turbines, and nuclear power generators.
- Maximum bearing journal accommodation – Support system accommodates rotor bearing journals from 70-450mm diameter with height-adjustable roller cassettes optimized for power industry rotors. The extended range enables handling of the largest power generation rotor geometries from nuclear plant generators to combined cycle gas turbines.
Maximum-Capacity Mechanical Design
- Ultimate soft-bearing pendulum suspension system – Maximum-scale pendulum-mounted support structure provides exceptional measurement sensitivity with visual resonance detection for the largest power industry rotors up to 40,000kg. This ultimate soft-bearing design enables unmistakable identification of resonance frequency range and tactile residual vibration assessment for the most extreme power generation applications.
- Ultra-low resonant frequency design for massive power rotors – Pendulum suspension system with ultra-low natural resonant frequency enables safe balancing at 120-250 rpm for rotors up to 40,000kg. This design characteristic provides exceptional safety margins for the largest power generation rotors while maintaining measurement precision despite extreme masses.
- Ultimate power industry flexibility – Machine configuration enables adaptation to the most diverse massive power generation rotor types through comprehensive tooling options and drive system selection. The flexibility accommodates power facilities handling the largest variety of power generation equipment without requiring multiple specialized machines.
Power Industry Rotor Handling Integration
- Ultimate dual-jack power rotor handling system – Two maximum-capacity integrated jacks provide shock-free installation and removal of rotors up to 40,000kg while supporting massive power generation components during assembly and maintenance operations. The ultimate jack system eliminates installation damage risks while facilitating safe handling of the most valuable power industry rotors.
- Enhanced patented “MOVING ROLLER”® axial stops for power industry – Maximum-capacity axial positioning system prevents displacement of massive power generation rotors while minimizing balancing errors through specialized contact design. The enhanced patented stops provide essential safety for the largest power generation rotor assemblies without compromising measurement accuracy.
- Maximum power industry turnaround capability – Design features optimize turnaround time for massive power generation rotor repairs where electricity generation downtime costs reach maximum levels. The rapid capability minimizes power generation losses associated with the most critical rotating equipment maintenance in major power facilities.
Ultimate-Power Drive System Configuration
- Maximum-power frequency-controlled drive – 110kW electric motor (typically triple standard power) with massive power reserve reduces acceleration and deceleration times by 65% while ensuring adequate torque for rotors up to 40,000kg. This unprecedented power advantage provides substantial productivity improvements in maximum-capacity power industry applications where downtime costs are extreme.
- Dual-drive system architecture for power industry – Comprehensive drive configuration incorporating both axial cardan shaft drive and belt drive systems optimized for massive power generation rotors. The dual-system approach provides maximum versatility for power industry facilities handling the largest turbine and generator rotor types.
- Primary axial cardan shaft drive for power generation – Ultra-robust cardan shaft transmission system designed for maximum torque delivery to power industry rotors up to 40,000kg. The axial drive provides direct connection capability for the most challenging power generation rotor configurations including nuclear, thermal, and gas turbine assemblies.
The PAK-1 unbalance measuring unit represents the latest generation of measuring complexes for dynamic balancing, combining high precision, stability, and ease of use. It’s designed to tackle a wide range of rotor balancing tasks, from simple to the most complex, requiring precise measurements.
Based on an industrial fanless computer with a touchscreen and a multi-channel measuring unit, the system ensures reliability and a long service life, even under intensive use. The PAK-1 utilizes a universal measuring path and modern component base, allowing for equally high accuracy when working with all types of rotors.
Its intuitive interface, self-calibration capability, and automation of key operations make the complex a convenient tool for both experienced specialists and beginners.
Features of the PAK-1 System:
- High-precision dynamic balancing for rotors of any configuration.
- Industrial fanless PC with touchscreen and multi-channel measuring unit.
- Setup using trial runs with calibration weights on production rotors.
- Self-calibration by the operator, eliminating annual service adjustment costs.
- Calculation of permissible unbalance values, even without technical documentation.
- Determination of control weight mass to simplify setup for a specific rotor.
- Real-time display of unbalance magnitude and angular position, including “highlighting” of the correction zone.
- Automatic measurement start upon reaching a set speed and automatic stop after cycle completion.
- Display of unbalance magnitude in grams, gmm, gcm, gmm/kg.
- Vector and exponential averaging for working with moving elements and in noisy conditions.
- Additional functions that significantly simplify the balancing process and expand the technological capabilities of the balancing machine.
- Generation and printing of balancing reports directly from the system.
- USB ports and Ethernet interfaces for connecting a printer, data storage, and integration into a local network.
|
Parameter |
Value |
|---|---|
|
Balancing rotors weight range, kg |
2000 – 40 000 |
|
Maximum rotor diameter (over the bed), mm |
4000 |
|
Distance between rotor bearing journal centers, mm, min/max |
800 – 12 000 |
|
Rotor bearin journals diameter, mm |
70 – 450 |
|
Machine type |
Soft-bearing |
|
Support type |
Rollers |
|
Minimal achievable residual specific unbalance, gmm/kg |
1.0 |
|
Rotor rotation speed range, rpm |
150 – 400 |
|
Drive type |
Cardan |
|
Electric motor power, kW |
90 |
|
Power supply parameters |
400V ± 10%, 3 Ph, 50Hz ± 1 |
|
Balancing system |
PAK-1 |
|
Overall machine dimensions (length x width x height), mm |
16 000 x 3000 x 3500 |
|
Machine weight, kg |
20000 |
- The operation manual on the machine with acceptance tests reports and the basic electric circuit – 1 pc.
- The operation manual on balancing system – 1 pc.
- Drive shaft – 1 pc.
