ATP-5000
Universal electronic actuator tester for cars & trucks, combined 12V/24V functionality

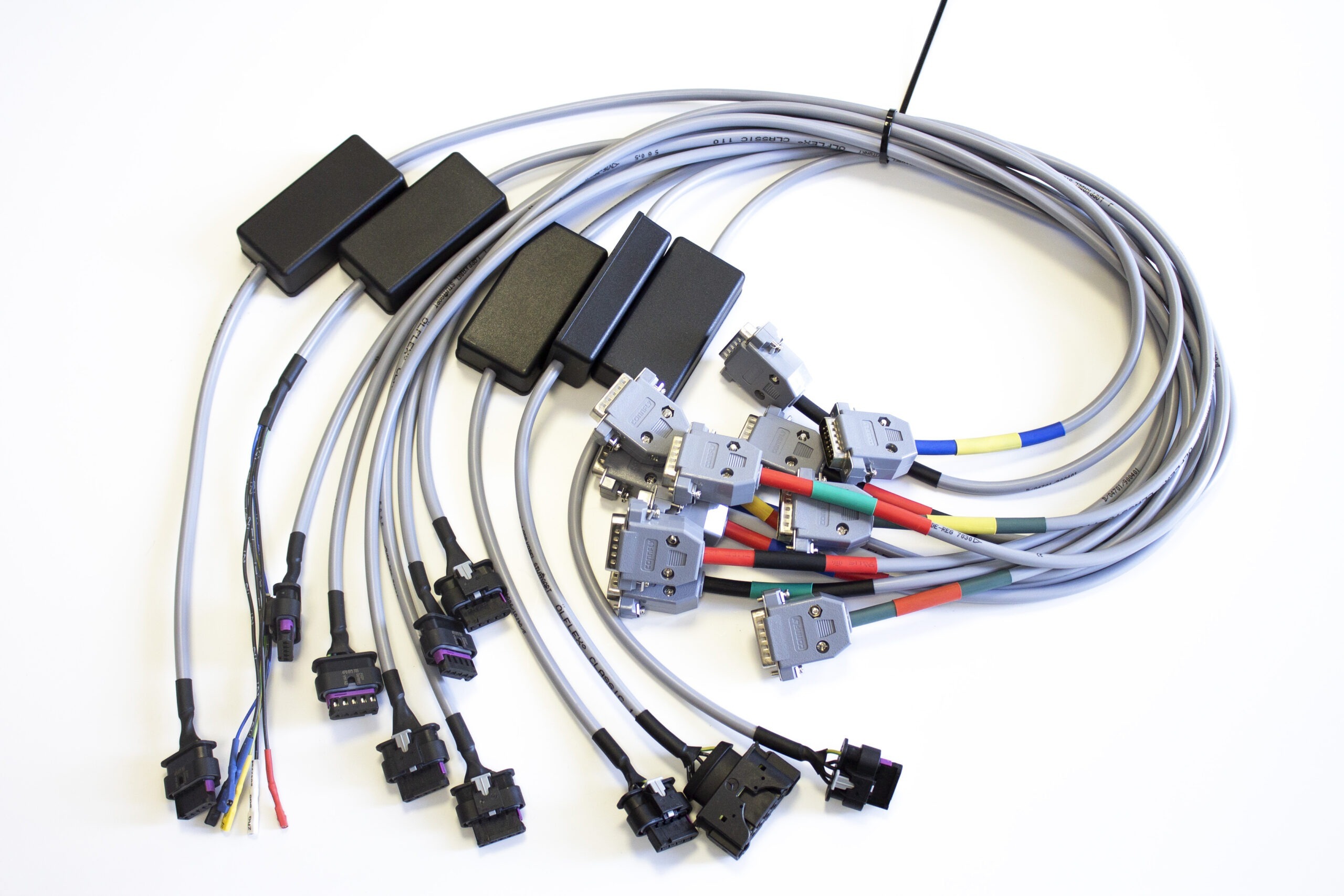

Diagnostic cabels

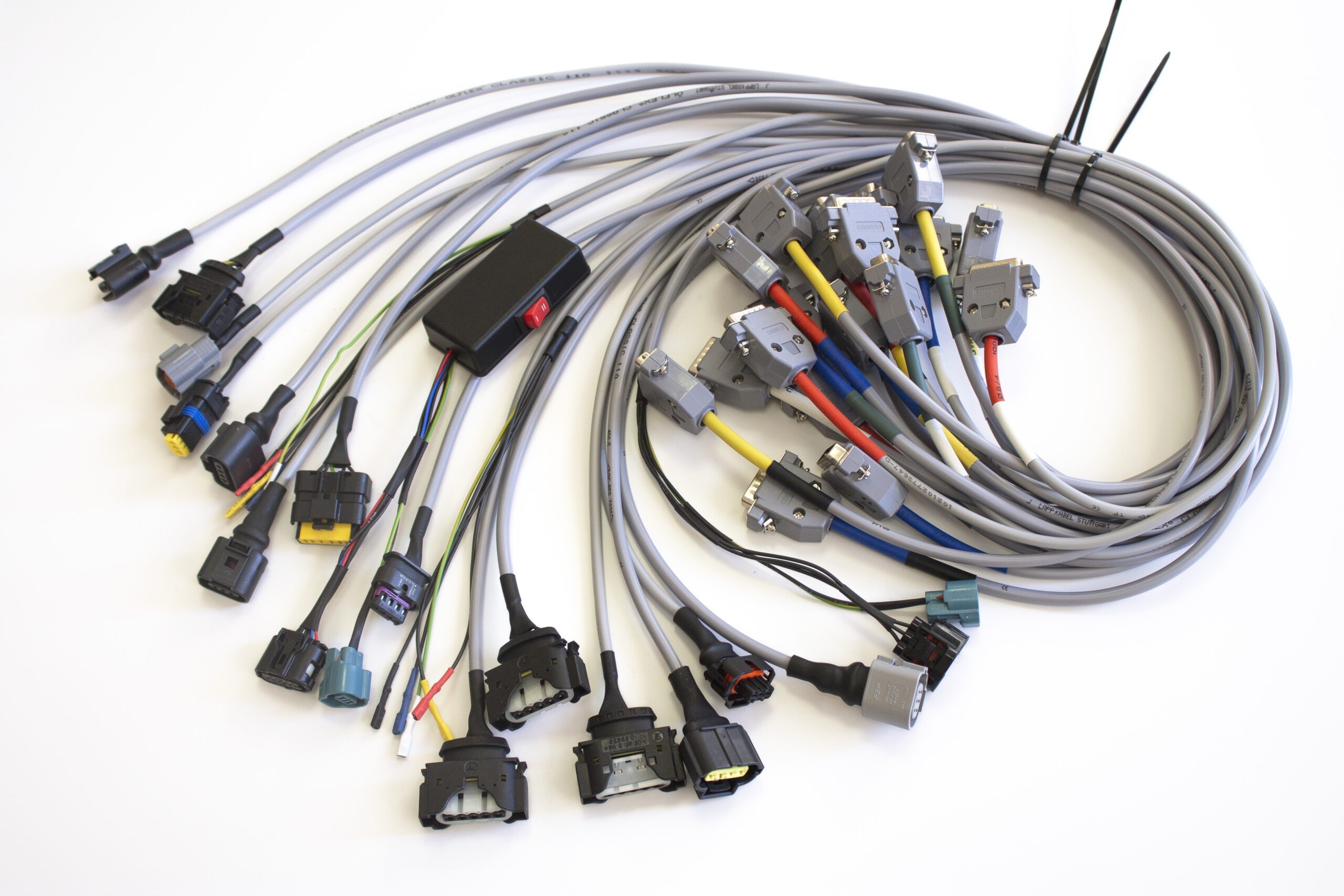

Additional cables

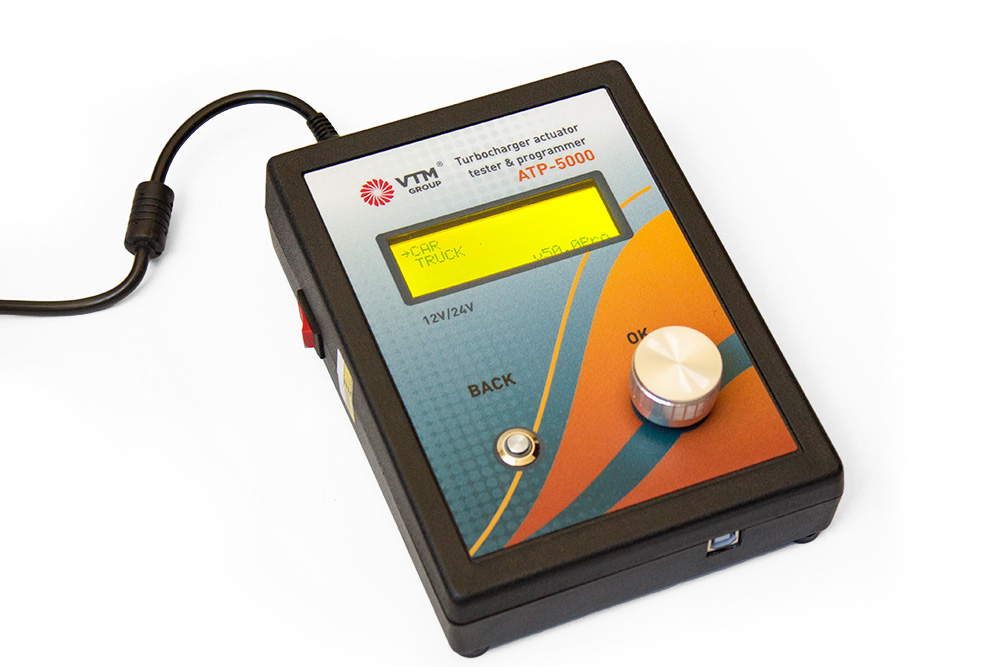

One device for both truck and car turbo actuators

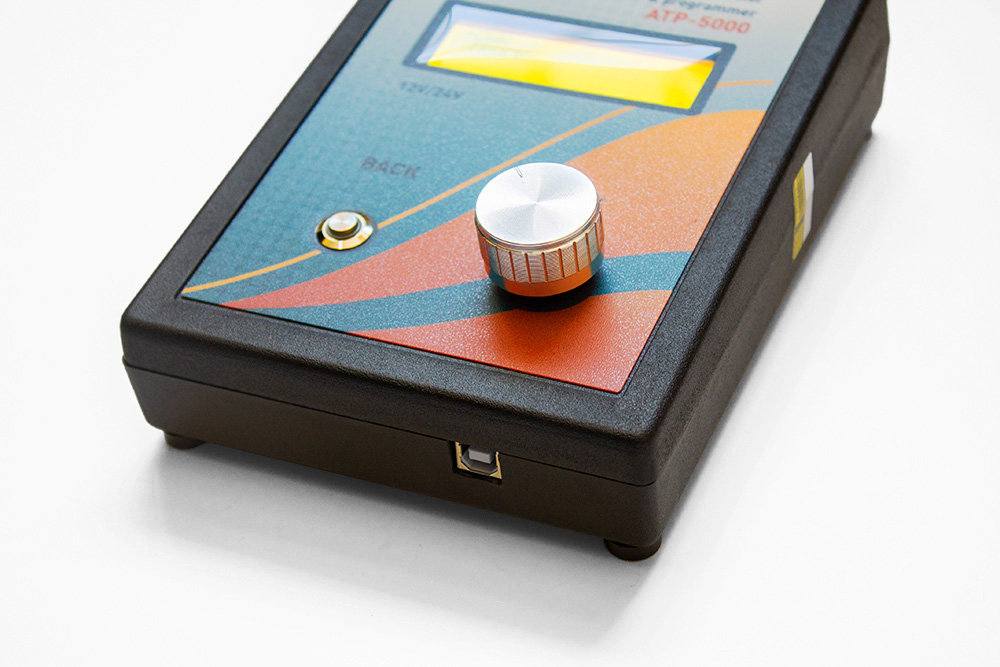

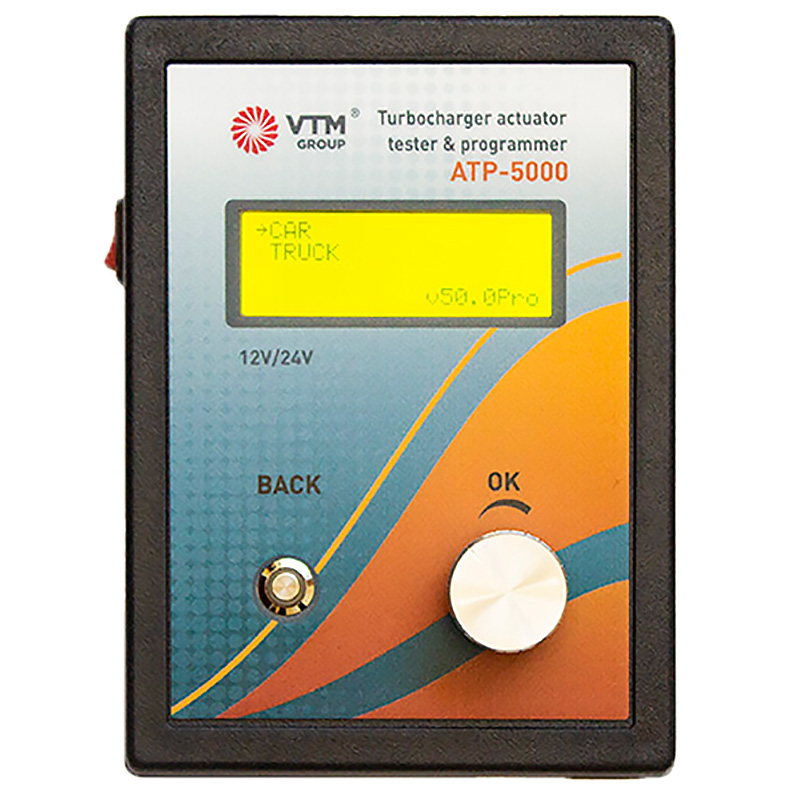

The ATP-5000 tester is designed for diagnostics of 24/12V car and truck turbocharger actuators. It supports testing of actuators of most manufacturers, programming of HELLA and SIEMENS actuators and calibration of HOLSET actuators.
The tester is used when calibrating variable turbocharger geometry on GEOMET stands.
The ATP-5000 tester can be successfully used in turbocharger repair services, as well as in automotive workshops when reinstalling or replacing the actuator on a turbocharger.
Diagnostics of passenger car actuators
Testing
- Testing of electronic turbocharger drives.
- Diagnosis of DC motors from 12 V to 2 A.
- Verification of supercharger solenoids used in pneumatic systems.
- Electronic and pneumatic actuator position sensors check according to protocol: PWM, ADC, SENT.
Programming
- Programming (adaptation) of electronic HELLA REA actuators:
- Saving the actuator firmware file in the instrument memory (up to 99 pcs.).
- Saving the actuator firmware files on a PC (no restrictions).
- Loading firmware from the PC into the actuator with the instrument. device.
- It is possible to copy settings between between actuators.
- Programming (adaptation) of electronic SIEMENS actuators.
Truck actuator diagnostics
Testing Function.
Diagnostics of the operation of actuators of most manufacturers. It has a mode of manual or automatic setting of the actuator position. Manual in the range from 5% to 95%, automatic from 10% to 90%.
To test actuators with 12 V supply voltage it is necessary to connect the cable through a 24/12V converter.
Functions Reset, Instal, Calibrate
Carrying out diagnostics of Holset actuators operation. This sequence of functions should be performed after installation (replacement) of the actuator on the turbocharger or after the need to correct the range of motion of the variable geometry.
It allows correct mounting of the actuator to the turbine and setting the correct range of motion of the lever.
Auxiliary functions
- 2A current protection within 3sec.
- Prompts you to match the cable label to the selected type of actuator.
- Percentage display of position sensor readings.
- USB Actuator control in conjunction with GEOMET software.
Car actuators
HELLA
6NW‑008‑091, 6NW‑008‑412, 6NW‑009‑206, 6NW‑009‑228, 6NW‑009‑420, 6NW‑009‑483, 6NW‑009‑543, 6NW‑009‑550, 6NW‑009‑660, 6NW‑010‑099‑01, 6NW‑010‑099‑02, 6NW‑010‑099‑03, 6NW‑010‑099‑05, 6NW‑010‑099‑07, 6NW‑010‑099‑08, 6NW‑010‑099‑21, 6NW‑010‑430‑00, 6NW‑010‑430‑01, 6NW‑010‑430‑03, 6NW‑010‑430‑04, 6NW‑010‑430‑22, 6NW‑011‑132‑62
MITSUBISHI
49335‑002xx, 49335‑004xx, 49135‑056xx, 49135‑057xx, 49135‑058xx, 49477‑01012, 49477‑01104, 49477‑01202, 49477‑01203, 49477‑01204, 49490‑93501
SONCEBOZ
5304‑9xx‑0065, 5304‑9xx‑0069, 5304‑9xx‑0073, 5304‑9xx‑0115, 5439‑9xx‑0061, 5439‑9xx‑0062, 5439‑9xx‑0063, 5439‑9xx‑0064, 5439‑9xx‑0110, 5439‑9xx‑0111, 5439‑9xx‑0112, 5439‑9xx‑0113, 5900‑110‑7019
DENSO
780709‑xxxx, 780708‑xxxx, 17201‑30100, 17201‑30101, 17201‑30110, 17201‑30160, 17201‑301xx
MAHLE
everything
SIEMENS
everything
HITACHI
5304‑970‑0062, 5304‑988‑0062
Torque motor
5900‑110‑7349, 5900‑110‑7304
BorgWarner
5900‑110‑7382, 5900‑110‑7267
Honeywell
835556‑0062, 842232‑0039
Others
K6T55273, K6T60572, and similar in principle of action.
Truck actuators
Holset
HE200VG
4309505, 3798216, 5350970, 5502162, 3792551, 3787309
HE300VG
5327045, 4352218, 3798573, 3798539, 3781755, 3779987, 3798573RX, 4352218NX, 5327045, 3798535, 5326055, 5326058, 5327045RX
HE300VE, HE351VE
5325887, 4043137, 4046836, 4046837, 68048234AA, R8048234AG, 68048234AF, 2834603, 3770973, 3770974, 4041504, 4048826, 4046264, 4048284, 2834220, 4051504-B, 5325947, 2834603, 2842406, 2834900, 2882075, 4955876, 2881755, 4955447
E400VE, HE451VE, HE531VE
2191616, 2839392, 3767356, 3770147, 3770148, 3770156, 3770157, 3795456, 4031011, 2838752, 3776442, 3769188, 2840972, 2835101, 4046521, 4046522, 4047376, 2835104, 2835103, 2838751, 2838753, 2838754, 2840974, 3769190, 3769176, 3773438, 4031001, 3776443, 3776437, 3791471, 3791497, 2840970, 3769175, 3773437, 3776436, 3776441
Holset US
Detroit Diesel 19514480D, 23536422, 23539570, 2836826, 3781169, 3786234, 378623400, 378623400H, 378623400HX, 3786234H, 3792069, 3792071, 3798597, 4033299, 4042439, 4042439NX, 4042439RX, 4047597, 4047598, 4609459, 5329513, 5352845, 5498208, AP80055, E23536422, E23539062, E23539570, R23536422, R23539062, R23539570
Mitsubishi
Mitsubishi actuator – IHI Isuzu turbo
RHF55V, 898027‑7725, 898027‑7721, 898027‑7722, 898027‑7720, 898027‑7733
Mitsubishi actuator – Mitsubishi turbo
49377‑03200, 49377‑03201, 49377‑03202, 49377‑03203, 49377‑03206
Mitsubishi actuator – Hino
826591‑0003, 826591‑3, 826591‑5003S, 779144‑5023S, 779144‑0025, 779144‑0023, 779144‑5017S, 779144‑0019, 779144‑0021, 847864‑1 847864‑0001, 847864‑5001, 852179‑0001, 852179‑5001, 852179‑0001, 17201E0740, 17201E0890, 17201E0741, 17201E0742
John Deere (Delphi)
175788, 174121, 179030, 179035, 179036, 175733, 175735, 175243, 173900, 28188882, 5010314R94, 5010568R91, 5010569R91, 5010571R91, 5010573R91, 5010581R91, 5010314R95, 1831833C91, 1831835C91, 1832204C91, 1832503C91, 1842337C91, 1842582C91, 1850404C95, 1870932C91, 1871090C91, 1871092C91
Mercedes
12739700003, 12739700012, 12739700004, 12739700013, 12739700016, 12739700005, 12739700014, 12739700017, A9360901680, A9360904780, A9360905680, A9360901880, A9360904880, A9360905780, A9360901980, A9360904980, A9360905880, A9360901680, A9360904780, A9360905680, A93609018801, A93609048801, A93609057801, A93609019802, A9360904980 , 10009700082, 10009700119, 10009700125, 10009700186, 10009700265, 10009700346, A9340901680, A9340902080, A9340902380, A9340902880, A9340904080, A9340904580
John Deere (Borg Warner)
179702, 179133, 12639700059, RE548373, RE548374, SE501979, RE542390, 178934, 179694, 479694, 12639700071, 12639860071, 12639880071, 12639700072, 12639860072, 12639880072, 12639700119, 12639860119, 12639880119, RE543092, RE548368, SE501963, DZ100188
Deutz-Fahr
12709700083, 12709700069, 12709700091, 12709880083, 04912581, 04911651, 04911652, 04912801, F946201090340
JCB
11559880019, 320/06177-1, 320061771, JCB 3CX, 4CX, 11559880020, 320/06377, 32006377
Hino (Jideco), New Holland
789003‑5003S, 789003‑5006S, 789003‑5007S, 789003‑0003, 789003‑0006, 7890030007, 789003‑0009, 789003‑3, 789003‑6, 789003‑7, 789003‑9, 17201E0431, 17201E0432, 17201E0433, 17201E0432A, 17201‑E0431, 17201‑E0432, 17201‑E0433, 17201‑E0432‑A
Tata
1848304C3R
Ford Powerstroke 6, 4l, 2008-2010, 479515
Supplied with:
- A set of cables for diagnostics of drives (car) – 12 pcs.
- Set of cables for diagnostics of position sensors – 6 pcs.
- Set of additional diagnostic cables for uncommon turbines – 12 pcs.
- A set of cables for diagnostics of drives (truck) – 16 pcs.
- 24/12V converter – 1 pc.
- USB cable – 1 pc.
- Standard power supply AC / DC 12V/24V, 4A.
