PRK-1000

Heavy-duty multifunctional workbench for industrial shafts repair

Get offer

1000

Maximal weight, kg

400

Maximal diameter, mm

4000

Maximum length, mm

Get offer

Industrial-grade solution for large driveshaft assemblies

The PRK-1000 stand is a professional industrial solution designed to perform a full cycle of assembly and welding of heavy two-support drive shafts.

The equipment is designed specifically for service centers and production sites specializing in the maintenance of industrial drive shafts: Metallurgy, Heavy Machinery, Pulp and Paper Industry, Heavy Transport and Special Equipment.

The PRK-1000 combines the functions of an assembly jig, a press for mounting crosspieces, and a rotating welding unit, ensuring high alignment accuracy and consistent quality of the ring weld. In its standard configuration, the stand can handle assemblies weighing up to 1000 kg and measuring up to 4000 mm in length, while the extended specification increases these limits to 1500 kg and 6000 mm, respectively.

This makes the PRK-1000 a versatile tool for working with the most massive and oversized shafts in the industry.

Key features
Design
Specification
Accessories

3-in-1 multifunctionality: assembly, disassembly, component replacement, and ring welding on a single working platform.
High load capacity: stable operation with heavy industrial shafts weighing from 50 to 1000 kg.
Welding automation: the welding process can be performed in automatic mode (completion after a full rotation) or manual control.
Universal integration: the stand is compatible with all types of semi-automatic welding machines (MIG/MAG), allowing the customer to use the equipment available at the production site.
Precision rotation: smooth rotor speed range (0.75–3 rpm) for forming the perfect weld.
High centering accuracy: a system of adjustable supports and prisms allows you to set the minimum shaft runout before welding, which is critical for subsequent balancing.
Integrated hydraulics: a movable hydraulic press with a force of up to 10 tons for pressing in cross cups.
A wide range of accessories for disassembling and assembling joints, as well as for installing a cardan joint on the spindle of the welding rotator.

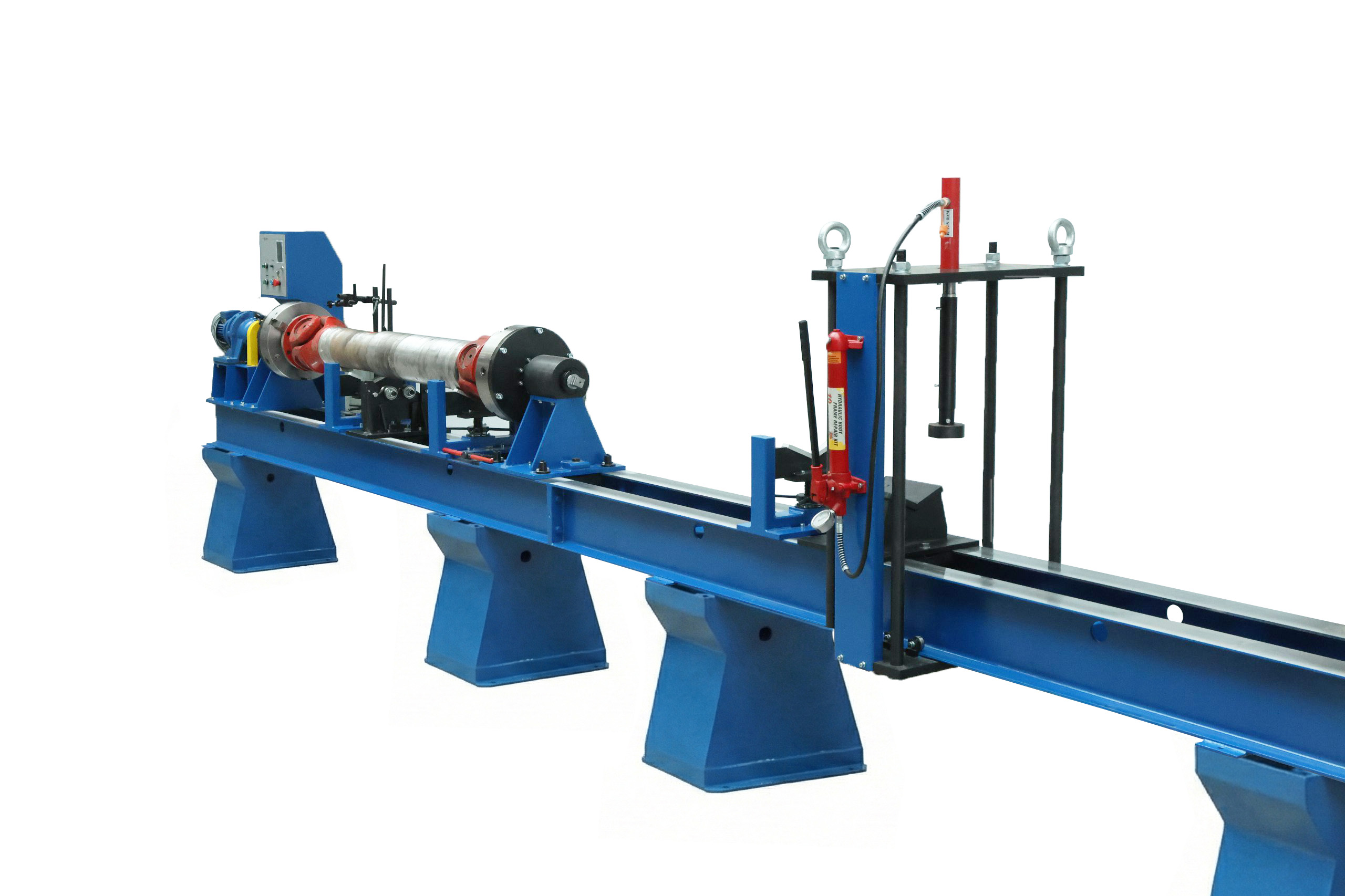

The stand is based on a solid 7000 mm long frame, which ensures structural rigidity under high loads. It houses functional units that cover the entire technological process:

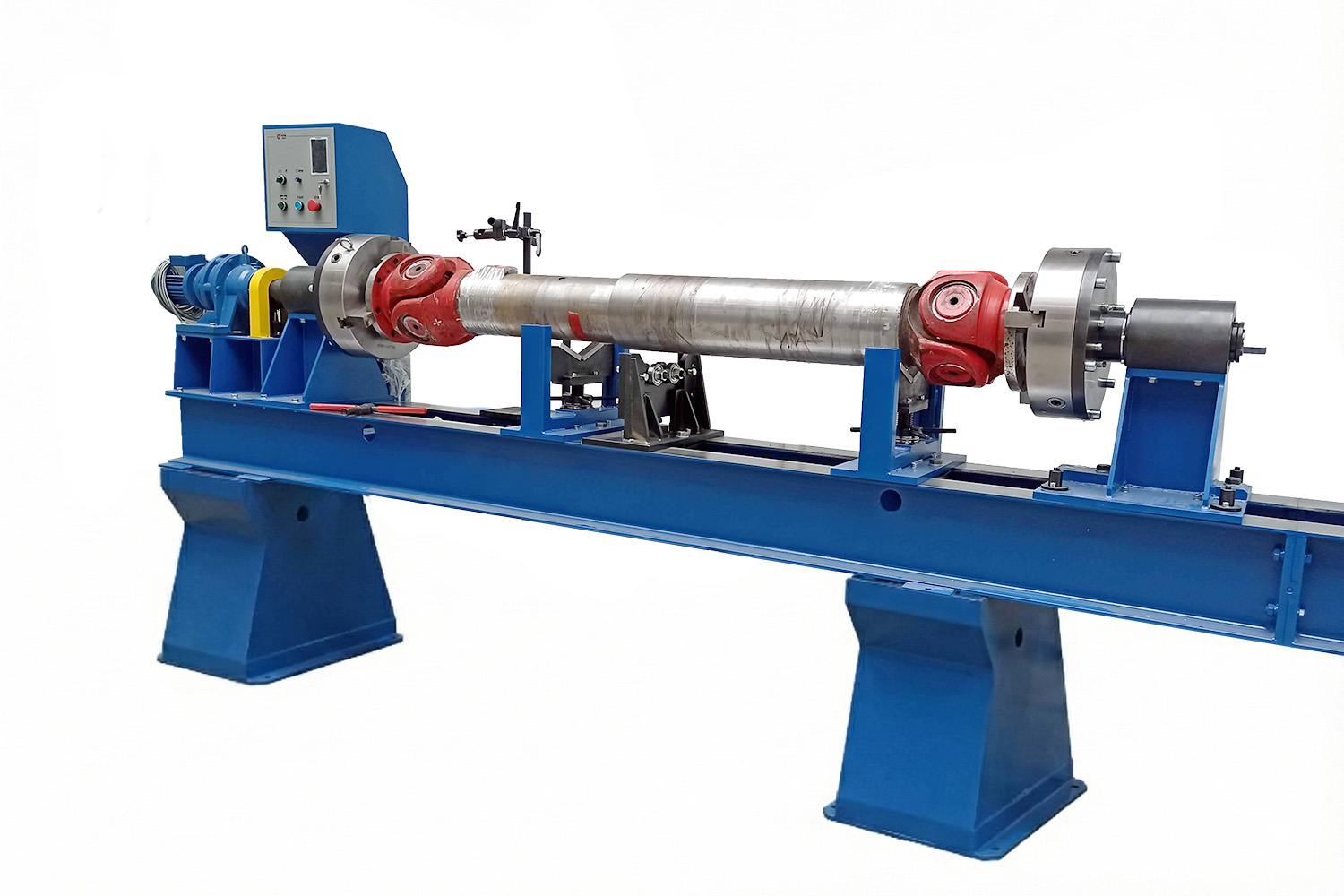

Positioning and rotation system: The stand is equipped with front (fixed) and rear (movable) headstocks with spindles. Smooth adjustment of the rotation speed (0.75–3.0 rpm) allows you to select the optimal mode for forming a high-quality weld.

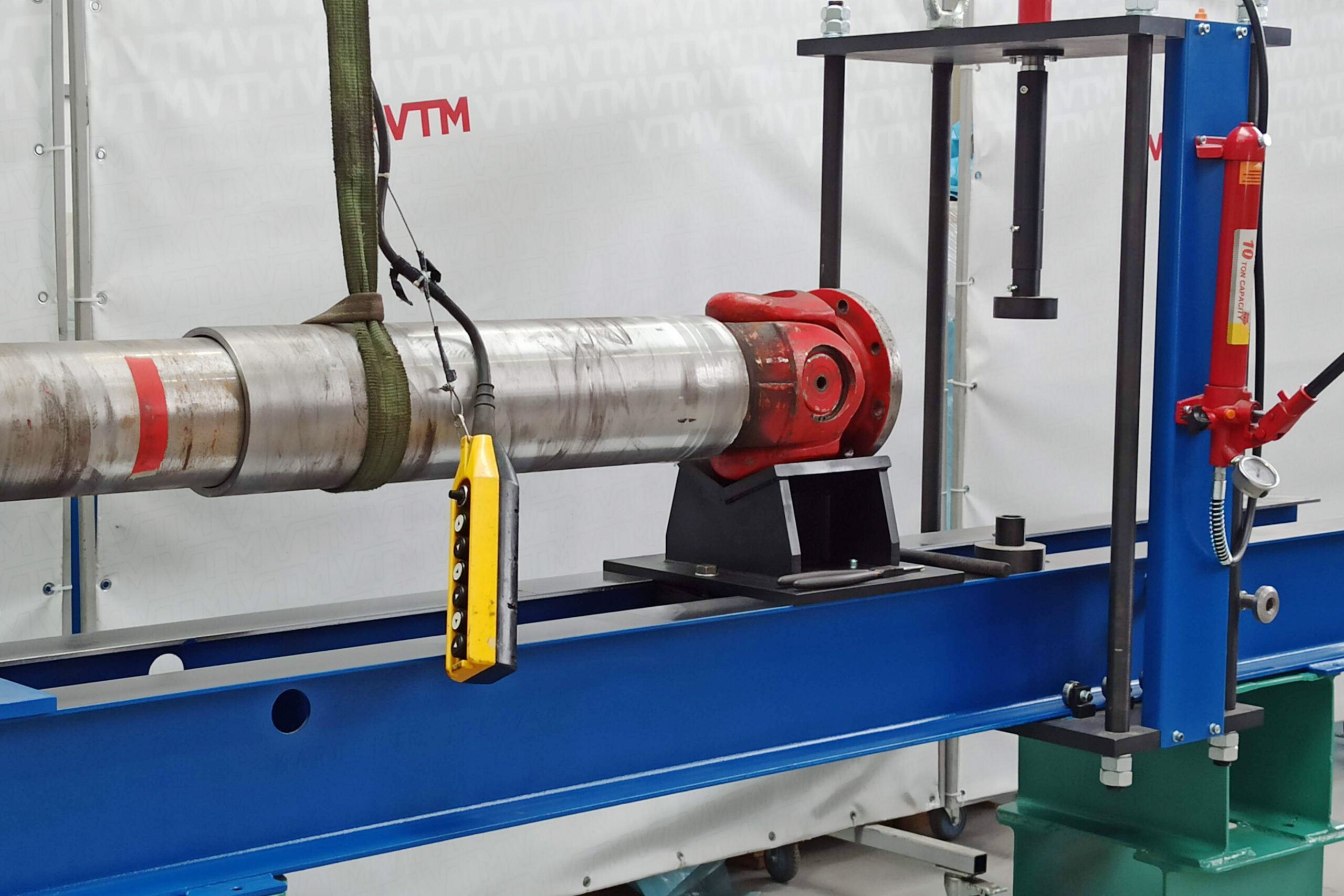

Hydraulic module: A movable hydraulic press with manual drive is integrated into the design. It is used for precise pressing of cross cups, and the portable hydraulic cylinder included in the set allows for efficient dismantling of worn units.
Supports and steady rests: Adjustable supports (prisms) are used to support long and heavy pipes, ensuring the alignment of all cardan shaft elements during tack welding and welding.
Control modes: Manual: for tack welding and short welds. Automatic: after pressing the “Start” button, the stand makes exactly one revolution (360°) and automatically stops rotating, ensuring perfect overlap (“lock”) of the weld.
Welding stand: A universal welding torch holder securely fixes the semi-automatic gun in the weld area, eliminating the “human factor” and ensuring arc stability.

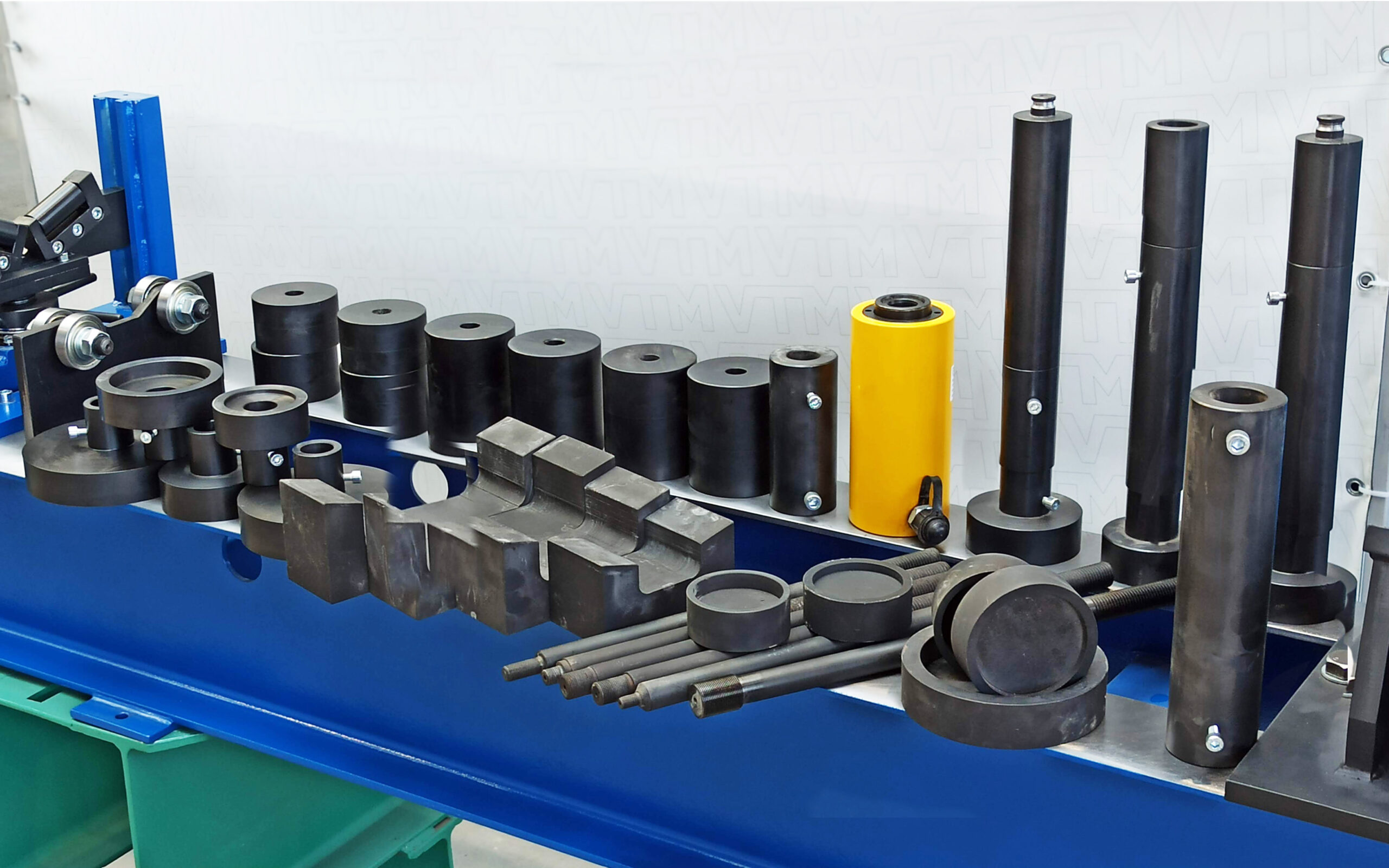

Tool kit: The stand is equipped with faceplates, three-jaw chucks, and a specialized set of tools for disassembling/assembling joints, allowing you to start working immediately after installing the equipment.
Electrical equipment and power supply. The stand operates from a single-phase 230V network, which greatly simplifies its integration into the infrastructure of small workshops. At the same time, the power consumption is only 0.37 kW (excluding the welding machine), which indicates the high energy efficiency of the drive.

Parameter	Value
Maximum mass of cardan shaft, kg	1000
Maximum cardan shaft diameter, mm	400
Maximum cardan shaft length, mm	4000
Rotation speed range of the part, rpm	0.75 – 3.0
Electric motor power, kW	0.37
Power supply parameters	230V ± 10%, 1 Ph, 50Hz ± 1
Overall machine dimensions (length x width x height), mm	7000 x 900 x 1500
Machine weight, kg	1000

Included accessories:

Hydraulic press – 1 set
Faceplate assembly – 2 pc.
Three-jaw chucks – 2 pc.
Adjustable tube support – 1 pc.
Tooling set for shaft assembly/disassembly according to specifications – 1 set.
Tools for machine maintenance – 1 set.

Free support and training

Engineering

After sale service

Personnel training

Request Your Custom Equipment Offer Today

Take advantage of cost savings, unmatched service, and qualification enhancement

Enjoy a 100% Money Back Guarantee
Benefit from Discounted Shipping Costs
Receive Free Online Job Skills Training

Submit your request

and our manager will reach out to fine-tune your personalized solution for you

Use together with other machine

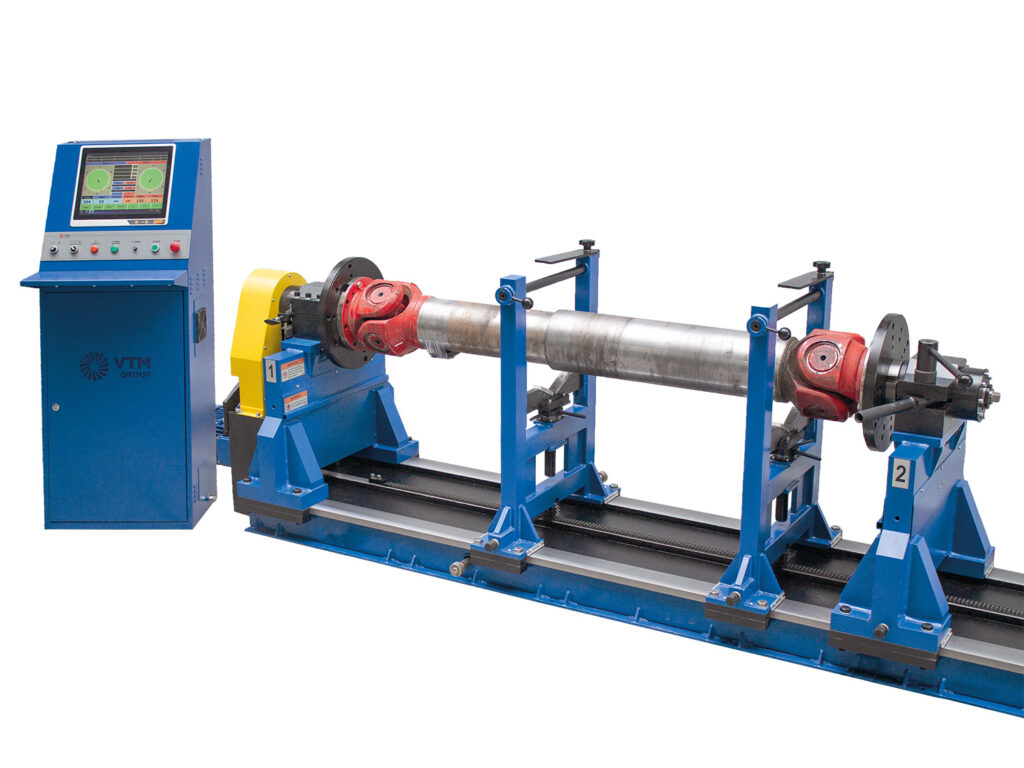

Balancing machine 97VK1000
